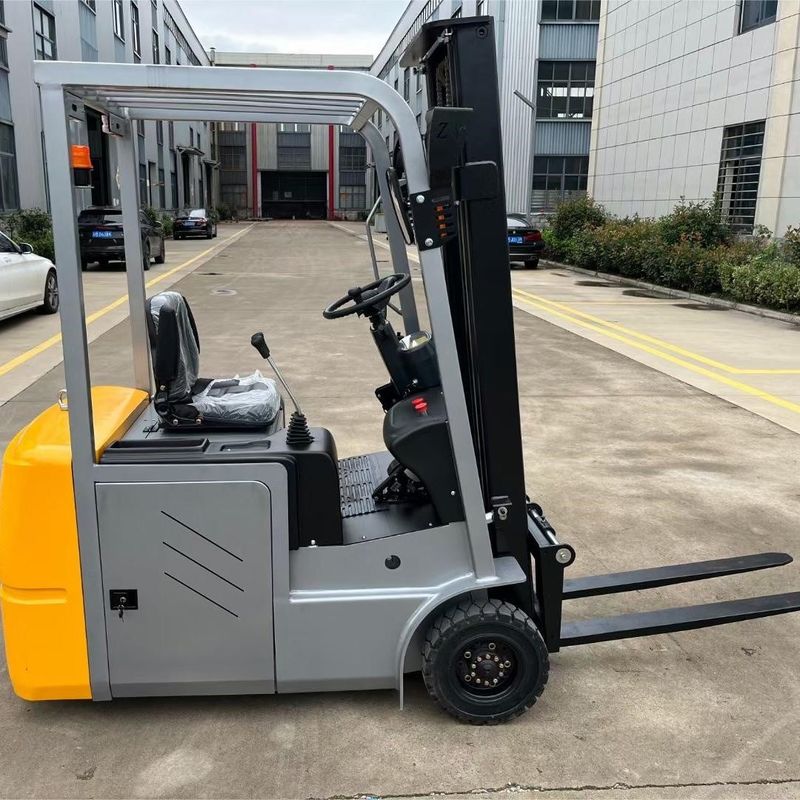

1T 3M 3 Wheel Electric Forklift Driven Motor Forklift

Product Details

Place of Origin: CHINA

Brand Name: KAD

Certification: CE

Model Number: CPD1030

Payment & Shipping Terms

Minimum Order Quantity: 1 units

Price: $4000-$5000/units

Packaging Details: iron pallet+plastic film

Delivery Time: 7 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50units/month

Get Best Price
Contact Now
Specifications
Highlight:

1T 3 Wheel Electric Forklift

,

3M 3 Wheel Electric Forklift

,

Driven Motor Forklift 3000mm

Load Capacity:
1000kg
Lifting Height:
3000mm
Load Centre:
500mm
Lifting Motoe:
3kw
Fork Length:
1070mm
Load Capacity:
1000kg
Lifting Height:
3000mm
Load Centre:
500mm
Lifting Motoe:
3kw
Fork Length:
1070mm
Description
1T 3M 3 Wheel Electric Forklift Driven Motor Forklift

3 Wheels Electric Forklift 1T 3M Rear Driven Motor Forklift

INTRODUCTION

The 3-wheel forklift is perfectly suited for handling small tonnage, high lift cargo storage applications. With a rated load capacity ranging from 1000kg to 1500kg and a standard maximum lifting height of 3500mm, it excels in efficiently moving and stacking goods in confined spaces. Its compact size and heavy-duty construction allow it to navigate tight aisles and maneuver around obstacles with ease, making it ideal for use in large-scale three-dimensional factories, warehouse storage facilities, supermarkets, and cargo handling at wharves. Whether you need to transport goods across busy warehouses or organize inventory in crowded storage areas, the 3-wheel forklift offers the flexibility and capability to get the job done effectively and safely.

MAIN FEATURE

1. The 3-wheel forklift is specifically engineered for medium duty material handling tasks, including stacking and loading/unloading operations.
2. Its design is optimized for narrow aisles, allowing it to maneuver effortlessly in tight spaces where traditional forklifts may struggle.

3. This versatile forklift accommodates both single-sided and double-sided pallets, providing flexibility in handling various types of cargo.

4. With a unique gear parallel shaft design arrangement for the drive motor and drive axle, the forklift boasts improved transmission efficiency and reduced noise levels during operation.

5. Operators benefit from a spacious operating area and an adjustable seat, ensuring a comfortable working environment for extended periods of operation.

6. Equipped with a large-capacity battery, the forklift ensures stability and reliability over extended periods, making it suitable for prolonged use in demanding industrial environments without compromising performance.

PRODUCT PARAMETERS

Model

CPD1530
CPD2030
CPD3030
Load Capacity
kg
1500
2000
3000
Lifting Height
mm
3000
3000
3000
Load Center
mm
500
500
500
Fork size
mm
1070*100*40
1220*120*60
1220*120*60
Ground Clearance
mm
60/130
80/130
80/130
Tyre Type

solid Tyres
solid Tyres
solid Tyres
Control Way

Steering Wheel
Steering Wheel
Steering Wheel
Speed Regulation Way

Stepless Speed Regulation
Stepless Speed Regulation
Stepless Speed Regulation
Protection Guard Height
mm
2000
2100
2100
Mast Tilt Angle (Front/Rear)
(°)
3.0/6.0
3.0/6.0
3.0/6.0
The Min.Turning Radius
mm
1750
2100
2150
Driving Speed with Full Load
km/h
6
15
15
Maximum Gradient with full load
°
5°/8°
15
15
Battery
V/Ah
48/140
60/280
48/420
Driving Motor
kw
3
5
5
Lifting Motor
kw
3
5
5.5
Tyre Size (Front/ Rear)
mm
400/400
22x7-12/18x7-8
22x7-12/18x7-8
Overall dimensions(L*W*H)
mm
3000*1030*2100
3450*1100*2100
3750*1160*2100
Weight
kg
2200
3000
3800
Reference Working Time
h
4/6
4/6
4/6
Increased height each tonnage
mm
1600/2000/2500/3000/3500
Max height
mm
2100/1600/1850/2100/2350



1T 3M 3 Wheel Electric Forklift Driven Motor Forklift 01T 3M 3 Wheel Electric Forklift Driven Motor Forklift 1



Userer

Classification of three-wheeled forklift trucks

Three-wheeled forklift trucks, also known as three-wheel electric forklifts, are versatile equipment commonly used in various industrial and commercial applications. Some common applications of three-wheeled forklift trucks include:



1. Warehousing: Three-wheeled forklift trucks are frequently used in warehouse environments for tasks such as loading and unloading pallets, stacking goods on shelves, and transporting materials within the facility. Their maneuverability and compact size make them ideal for navigating tight aisles and spaces in warehouses.

2. Retail: Three-wheeled forklift trucks are popular in retail settings such as supermarkets, distribution centers, and retail warehouses. They are used for stocking shelves, handling inventory, and moving goods efficiently in retail environments.

3. Manufacturing: Three-wheeled forklift trucks are commonly employed in manufacturing facilities for tasks like loading and unloading materials, transporting components between production lines, and moving products within the factory floor. Their agility and ease of operation make them suitable for diverse manufacturing applications.

4. Construction: Three-wheeled forklift trucks are utilized in construction sites for handling building materials, equipment, and supplies. Their compact design allows them to maneuver around construction sites easily, making them valuable for material handling in these challenging environments.

5. Transportation: Three-wheeled forklift trucks can be used in transportation and logistics operations for loading and unloading cargo from trucks and containers, as well as for moving palletized goods in distribution centers or freight yards.

6. Hospitality: In the hospitality industry, three-wheeled forklift trucks can be used in hotels, restaurants, and event venues for tasks like handling supplies, moving equipment, and managing inventory effectively.

7. Cold Storage Facilities: Three-wheeled forklift trucks are suitable for use in cold storage environments due to their electric power source, which eliminates the emissions associated with fuel-powered equipment. They can efficiently handle goods in temperature-controlled storage facilities.



Overall, three-wheeled forklift trucks offer flexibility, maneuverability, and efficiency in a wide range of applications across different industries, making them a versatile solution for various material handling tasks.
