1.5Ton 3 Wheel Electric Forklift 3m Counterbalance Walkie Stacker Front Axle Drive

Product Details

Place of Origin: China

Brand Name: KAD

Certification: CE

Model Number: CPD1530

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: $4000-$5000 /unit

Packaging Details: Iron pallet+plastic film

Delivery Time: 7 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50units/month

Get Best Price
Contact Now
Specifications
Highlight:

1.5Ton 3 Wheel Electric Forklift

,

3 Wheel Electric Forklift 3m

,

counterbalance walkie stacker Front Axle Drive

Product Name:
Electric Forklift
Power Type:
Electric Power
Loading Capacity:
1500kg
Weight:
1600kg
Brand:
KAD
Load Center:
500mm
Tyres:
Solid Core Tire
Product Name:
Electric Forklift
Power Type:
Electric Power
Loading Capacity:
1500kg
Weight:
1600kg
Brand:
KAD
Load Center:
500mm
Tyres:
Solid Core Tire
Description

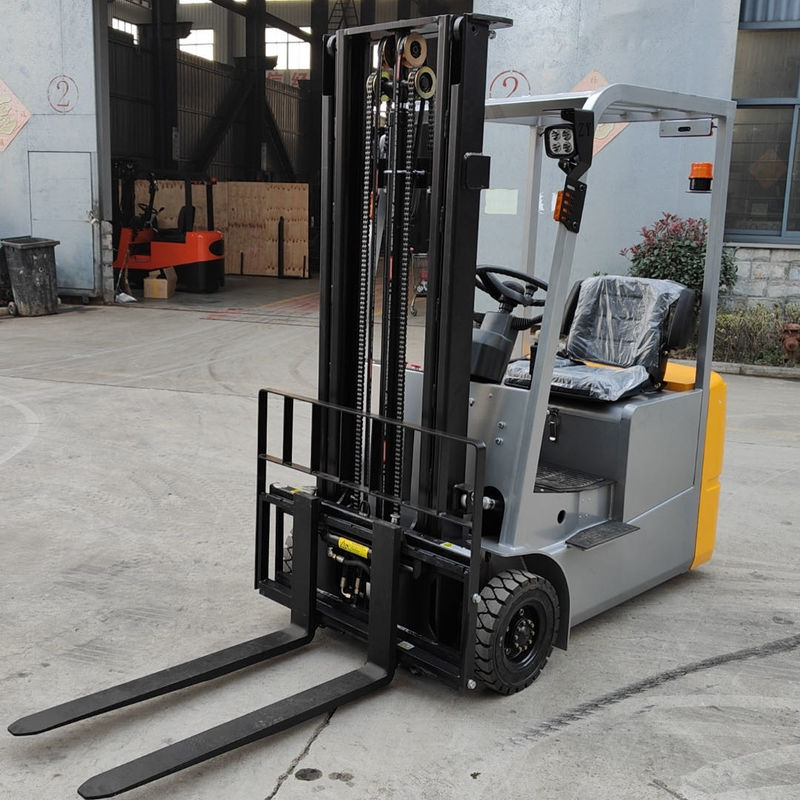

1.5Ton 3 Wheel Electric Forklift 3m Counterbalance Walkie Stacker Front Axle Drive
Product Description

1.5 ton and lifting height 3 m front axle drive 3-wheel counterbalanced electric heavy-duty forklift with side shift

Three-wheel front drive electric forklift is a type of forklift that uses an electric drive system to provide power and is designed with front wheel drive. This type of forklift is usually equipped with three wheels, two at the front of the forklift and one at the rear to provide better maneuverability and stability. This type of forklift is usually easier to control when operating as the front wheel drive provides better steering performance, allowing for more maneuverability when operating in confined spaces Overall, it is suitable for cargo handling and stacking operations in industries such as warehousing, logistics, and manufacturing.1.5Ton 3 Wheel Electric Forklift 3m Counterbalance Walkie Stacker Front Axle Drive 0

1.5Ton 3 Wheel Electric Forklift 3m Counterbalance Walkie Stacker Front Axle Drive 1

1.5Ton 3 Wheel Electric Forklift 3m Counterbalance Walkie Stacker Front Axle Drive 2

Main Features

1.Front wheel drive design makes the forklift easier to operate, with better steering performance and maneuverability, suitable for operation in narrow space.
2.Medium duty material handling, stacking and loading/unloading.
3. Single-sided and double-sided pallets can be used.
4. The drive motor and drive axle adopt the unique gear parallel shaft design arrangement. Improves transmission efficiency and reduces transmission noise.
5. Spacious operating space and adjustable seat provide a comfortable working environment for all operators.
6. Large-capacity battery, to ensure the stability and reliability of long-time use.

Specification



Model
CPD1030
CPD1530
Load capacity (kg)
1000
1500
Lift height (mm)
3000
3000
Load centre (mm)
500
500
Fork size (mm)
1070*100*40
1070*100*40
Ground Clearance (mm)
55/150
55/150
Tyre Type
Solid Tyres
Solid Tyres
Control Way
Steering Wheel
Steering Wheel
Speed Regulation Way
Stepless Speed Regulation
Stepless Speed Regulation
Protection Guard Height(mm)
2000
2000
Mast Tilt Angle (Front/Rear)(°)
3.0/6.0
3.0/6.0
The Min.Turning Radius(mm)
1750
1750
Driving Speed with Full Load(km/h)
6.5
6.5
Maximum Gradient with full load(°)
3/5
3/5
Battery(V/Ah)
48/140
48/140
Reference Working Time(h)
4/6
4/6
Driving Motor(kw)
3
3
Lifting Motor(kw)
3
3
Tyre Size (Front/ Rear)(mm)
350/300
350/300
Overall Dimension(L*W*H)(mm)
2970*1020*2100
3100*1020*2100
Weight(kg)
1600
1700
Increased height each tonnage(mm)
1600/2000/2500/3000/3500
Max height(mm)
2100/1600/1850/2100/2350

How to operate electric three-wheel front drive forklift trucks

The operation of an electric 3-wheel front drive forklift involves several key steps to ensure the safe and efficient handling of loads in a variety of material handling applications. The following is a detailed overview of the operating process:

1. pre-operational inspection:

Before operating the forklift, perform a pre-operational inspection to ensure the vehicle is in good working order. Check the battery charge, check the tyres for wear and damage, verify that all controls and safety features are in order, and ensure that the forks are securely attached.
2. Mount and start the forklift:

Mount the forklift using the designated steps and handrails. Once seated in the operator's compartment, adjust the seat and mirrors for optimum visibility. Insert the key and start the motor according to the manufacturer's instructions.
3. Familiarise yourself with the controls:

Take a moment to familiarise yourself with the controls and instrumentation of the forklift. This includes the steering wheel, accelerator, brake pedal, lift control, tilt control, horn, lights and emergency stop button. Make sure you understand the location and function of each control before proceeding.

4. lifting and lowering loads:

When raising or lowering loads, approach pallets or objects with care and keep the forks directly underneath. Use the lift control to raise or lower the forks and the tilt control to adjust the fork angle if necessary. Ensure that the load is securely positioned on the forks before moving.
5. Operating in confined spaces:

Use the manoeuvrability of the forklift to navigate through tight spaces and narrow aisles. Use tight turning radii to make slow and controlled turns to avoid collisions and maximise the use of space.
6. Stacking and Unloading Goods:

When stacking goods on shelves or racks, approach the storage location slowly and carefully. Align the forks with the pallet slots and use the lift controls to raise the load to the desired height. When unloading goods, gradually lower the forks to ensure that the goods are stable before stepping back.
7. Parking and shutdown:

After completing the forklift operation, park it in the designated parking area or at the end of the aisle. Lower the forks to the ground and apply the parking brake. Switch off the motor and remove the key from the ignition. If parking on a slope, use wheel chocks to prevent the forklift from rolling.



By following these steps and adhering to safe operating practices, you can effectively and safely operate your electric 3-wheel front drive forklift in a variety of material handling environments. Remember to always prioritise safety and be aware of your surroundings when operating your forklift.
