1000kg Capacity Electric Sit Down Forklift CE Electric Straddle Stacker 3 Wheel

Product Details

Place of Origin: China

Brand Name: KAD

Certification: CE

Model Number: CPD1030

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: $4000-$5000 /unit

Packaging Details: Iron pallet+plastic film

Delivery Time: 7 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50units/month

Get Best Price
Contact Now
Specifications
Highlight:

1000kg electric sit down forklift

,

electric sit down forklift CE

,

electric straddle stacker 3 wheel

Product Name:
Electric Forklift
Power Type:
Electric Power
Loading Capacity:
1000kg
Weight:
1600kg
Brand:
KAD
Load Center:
500mm
Tyres:
Solid Core Tire
Product Name:
Electric Forklift
Power Type:
Electric Power
Loading Capacity:
1000kg
Weight:
1600kg
Brand:
KAD
Load Center:
500mm
Tyres:
Solid Core Tire
Description

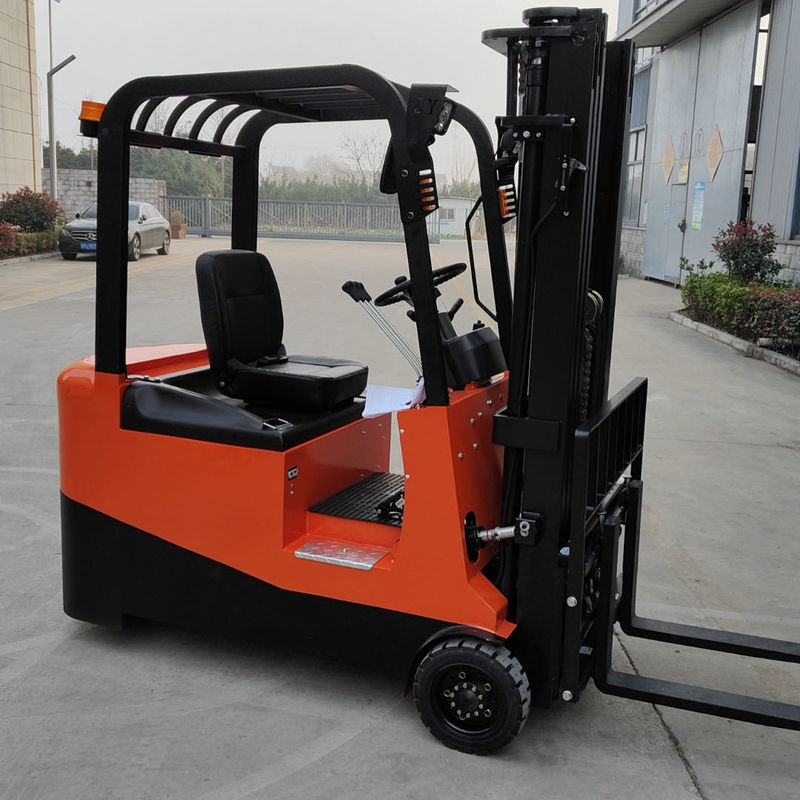

1000kg Capacity Electric Sit Down Forklift CE Electric Straddle Stacker 3 Wheel
Product Description

Counterbalanced 3-wheel front drive electric forklift truck with CE certificate for narrow aisles

Three-wheel front drive electric forklift is a type of forklift that uses an electric drive system to provide power and is designed with front wheel drive. This type of forklift is usually equipped with three wheels, two at the front of the forklift and one at the rear to provide better maneuverability and stability. This type of forklift is usually easier to control when operating as the front wheel drive provides better steering performance, allowing for more maneuverability when operating in confined spaces Overall, it is suitable for cargo handling and stacking operations in industries such as warehousing, logistics, and manufacturing.1000kg Capacity Electric Sit Down Forklift CE Electric Straddle Stacker 3 Wheel 0

1000kg Capacity Electric Sit Down Forklift CE Electric Straddle Stacker 3 Wheel 1

1000kg Capacity Electric Sit Down Forklift CE Electric Straddle Stacker 3 Wheel 2

Main Features

1.Front wheel drive design makes the forklift easier to operate, with better steering performance and maneuverability, suitable for operation in narrow space.
2.Medium duty material handling, stacking and loading/unloading.
3. Single-sided and double-sided pallets can be used.
4. The drive motor and drive axle adopt the unique gear parallel shaft design arrangement. Improves transmission efficiency and reduces transmission noise.
5. Spacious operating space and adjustable seat provide a comfortable working environment for all operators.
6. Large-capacity battery, to ensure the stability and reliability of long-time use.

Specification



Model
CPD1030
CPD1530
Load capacity (kg)
1000
1500
Lift height (mm)
3000
3000
Load centre (mm)
500
500
Fork size (mm)
1070*100*40
1070*100*40
Ground Clearance (mm)
55/150
55/150
Tyre Type
Solid Tyres
Solid Tyres
Control Way
Steering Wheel
Steering Wheel
Speed Regulation Way
Stepless Speed Regulation
Stepless Speed Regulation
Protection Guard Height(mm)
2000
2000
Mast Tilt Angle (Front/Rear)(°)
3.0/6.0
3.0/6.0
The Min.Turning Radius(mm)
1750
1750
Driving Speed with Full Load(km/h)
6.5
6.5
Maximum Gradient with full load(°)
3/5
3/5
Battery(V/Ah)
48/140
48/140
Reference Working Time(h)
4/6
4/6
Driving Motor(kw)
3
3
Lifting Motor(kw)
3
3
Tyre Size (Front/ Rear)(mm)
350/300
350/300
Overall Dimension(L*W*H)(mm)
2970*1020*2100
3100*1020*2100
Weight(kg)
1600
1700
Increased height each tonnage(mm)
1600/2000/2500/3000/3500
Max height(mm)
2100/1600/1850/2100/2350

The introduction of the world's leading forklift brands

Forklifts are vital equipment in the logistics industry for loading, unloading and handling of goods. Many different brands of forklifts exist in the market, and each brand has its unique features and advantages. The following are some representative forklift brands that have high visibility and good reputation in the market.
1.Toyota Forklift
Toyota Forklift is one of the world's recognized leaders in the forklift industry. As a Japanese company, Toyota Forklift is known for its high quality, reliability and innovation. The brand offers a wide variety of forklift products, including internal combustion forklifts, electric forklifts and hand stackers. Whether in warehousing, manufacturing or logistics, Tony forklifts are highly favored.
2. Suzuki Forklifts (Linde Material Handling)
Suzuki Forklift is a German company and one of the world's leading forklift manufacturers. Its products are known for their efficiency, safety and innovation. Suzuki Forklift specializes in providing customers with different kinds of forklift solutions, including internal combustion forklifts, electric forklifts and automated forklift systems.
3. Nissan Forklift
Nissan is a globally recognized automobile manufacturer that also has a good reputation in the forklift sector. Nissan Forklift products are known for their power, efficiency and excellent quality. Nissan forklifts are not only heavily used in the automotive industry, but also widely used in other industries.
To summarize, there are many high-quality forklifts in the world. However, Taizhou kayond is also a forklift manufacturing company in Taizhou, China with rich experience in providing various types of forklift products and solutions. Kayond Forklift is committed to providing customers with high-quality, high-performance forklift products designed to meet their needs in the areas of logistics, manufacturing and warehousing. Their product line covers different types of forklifts, such as electric forklifts and hand stackers, as well as related accessories and services. Kayond Forklift Company has established a certain market influence and has a certain competitive strength in the forklift industry.
