All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round
All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round
All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round
All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round
All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round
All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round
All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round
All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round

All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round

Product Details

Place of Origin: China

Brand Name: CUSTOM

Certification: CE

Model Number: CQD

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: To be negotiated

Packaging Details: Iron pallet+plastic film

Delivery Time: 7 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50units/month

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

2000kg electric reach trucks

,

2000kg electric reach forklift

Product Name:
All Direction Reach Stacker
Loading Capacity:
2000kg
Brand:
Custom
Load Center:
500mm
Lifting Height:
3000mm
Battery:
24/180AH
Ground Clearance:
65mm
Product Name:
All Direction Reach Stacker
Loading Capacity:
2000kg
Brand:
Custom
Load Center:
500mm
Lifting Height:
3000mm
Battery:
24/180AH
Ground Clearance:
65mm
Description

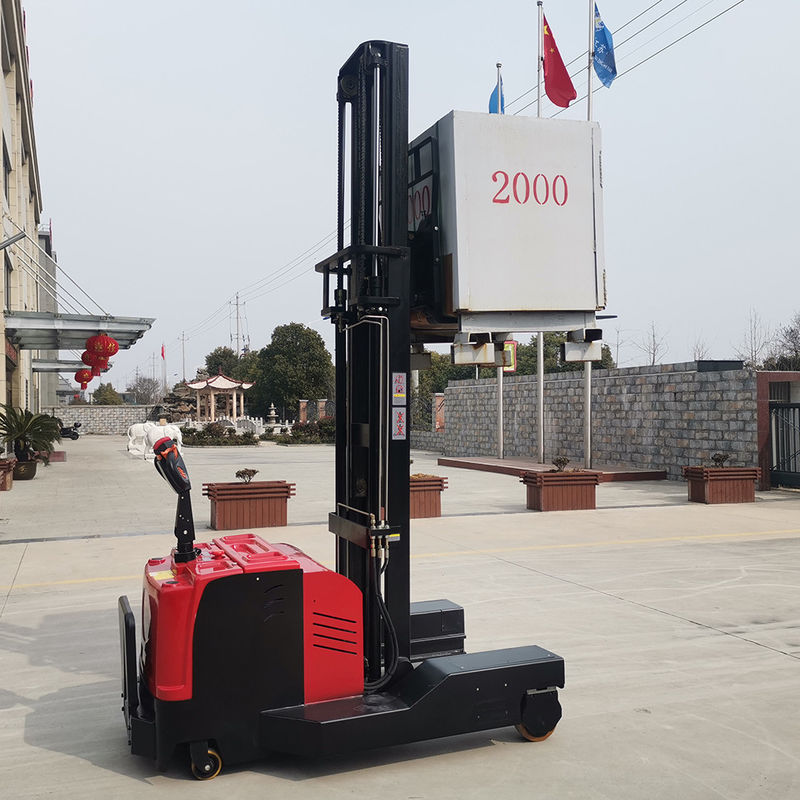

All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round

Omni-Directional Stackers Narrow Space Go Round Ultra Multifunctional And Flexible







Omni-directional stackers redefine efficiency in material handling with their ability to navigate in any direction effortlessly, including sideways and diagonal movements. This flexibility allows them to operate seamlessly in tight and irregular spaces, enhancing the adaptability of warehouse layouts and maximizing storage density. The advanced maneuverability reduces the need for complex turning and repositioning, which accelerates task completion and minimizes operational downtime. Their precision in movement improves the accuracy of stacking and retrieval tasks, leading to fewer errors and reduced product handling damage. By enabling smooth and swift transitions across various directions, omni-directional stackers contribute to a more streamlined, safer, and productive working environment.







Raise 3m
Raise 3m
Raise 3m
Rated lifting capacity
kg
1000
1500
2000
Overall curb weight
kg
1600
1800
2000
Overall length (gantry retracted)
mm
2467
2467
2567
Overall width
mm
1317
1317
1317
Static height of gantry
mm
2080
2080
2080
Maximum fork lift height
mm
3000
3000
3000
Forward distance
mm
580
580
580
Ground clearance
mm
65
65
65
Maximum lifting speed (unloaded/full load)
mm/s
150/90
150/90
150/90
Maximum descent speed (unloaded/full load)
mm/s
115/380
115/380
115/380
Full load forward speed
mm/s
195
195
195
Maximum operating speed (unloaded/full load)
km/h
5.5/4.4
5.5/4.4
5.5/4.4
Minimum outside turning radius
mm
1600
1600
1600
Maximum climb with full load
%
5
5
5
Load centre distance
mm
500
500
500
Travelling motor
kw
1.5
1.5
1.5
Lifting motor
kw
3
3
3
Battery rated power
V/Ah
24/180
24/180
24/180
Drive Wheel Size
mm
250*80
250*80
250*80
Auxiliary wheel size
mm
125*50
125*50
125*50
Drive Wheel Type

Pu
Pu
Pu
All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round 0
All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round 1
All Direction Electric Reach Stacker 230V 220V 100V 127V 110V Go Round 2
