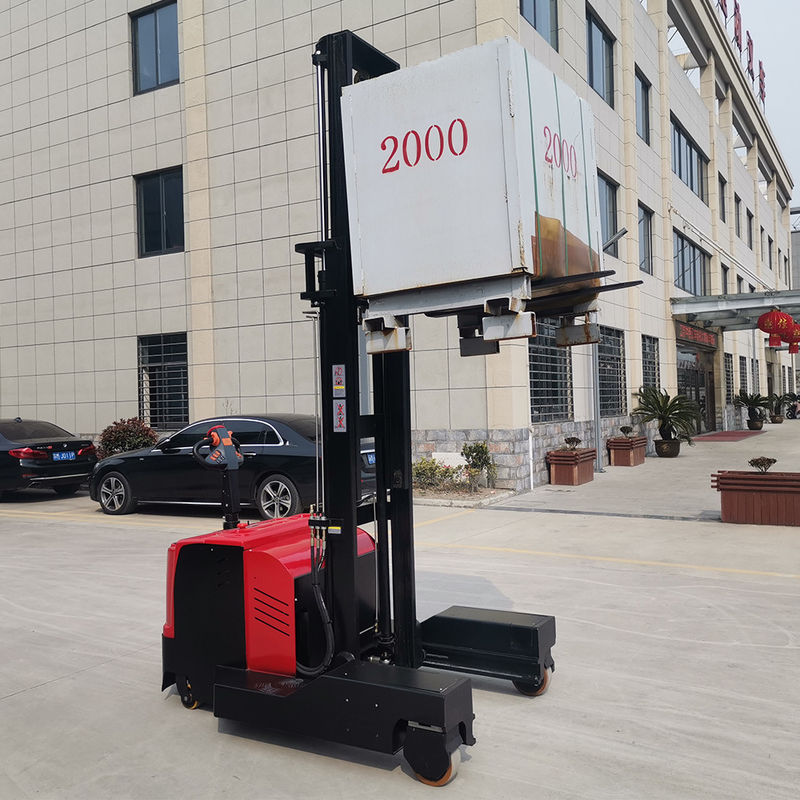

4400lbs 2200lbs All Direction Reach Stacker Chinese Premium Products

Product Details

Place of Origin: China

Brand Name: CUSTOM

Certification: CE

Model Number: CQD

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: To be negotiated

Packaging Details: Iron pallet+plastic film

Delivery Time: 7 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50units/month

Get Best Price
Contact Now
Specifications
Highlight:

2000kg electric reach trucks

,

2000kg electric reach forklift

Product Name:
All Direction Reach Stacker
Loading Capacity:
2000kg
Brand:
Custom
Load Center:
500mm
Lifting Height:
3000mm
Battery:
24/180AH
Ground Clearance:
65mm
Product Name:
All Direction Reach Stacker
Loading Capacity:
2000kg
Brand:
Custom
Load Center:
500mm
Lifting Height:
3000mm
Battery:
24/180AH
Ground Clearance:
65mm
Description
4400lbs 2200lbs All Direction Reach Stacker Chinese Premium Products

4400lbs 2200lbs All Direction Reach Stacker Chinese Premium Products





  • Next-Generation Electronic Drive Wheels: Revolutionize your workflow with cutting-edge electronic drive wheels that deliver exceptional agility, allowing for seamless turning and precise speed adjustments.

  • Powerful 280Ah Battery: Stay productive for extended periods with a high-performance 280Ah battery, engineered for long-lasting use and minimal interruptions.

  • Durable One-Piece Forged Forks: Handle heavier loads with confidence thanks to the robust one-piece forged forks, which also feature an integrated swinging mechanism for greater operational flexibility.

  • Versatile Pallet Handling: Adapt effortlessly to a variety of pallet types, including single-sided, double-sided, tic-tac-toe, and chuan-tac-toe, ensuring versatile applications in diverse settings.

  • Smooth Gantry Operation: Achieve seamless gantry movements with a large oil cylinder that guarantees gentle forward motion and smooth lift/lower functionality.

  • Multi-Directional Travel Capabilities: Enhance your maneuverability with advanced transverse and sideways travel features, allowing for both forward and backward side movement.

  • Efficient In-Place Rotation: Maximize efficiency in tight spaces with precise in-place turning and complete rotations, optimizing handling in constrained environments.





Raise 3m
Raise 3m
Raise 3m
Rated lifting capacity
kg
1000
1500
2000
Overall curb weight
kg
1600
1800
2000
Overall length (gantry retracted)
mm
2467
2467
2567
Overall width
mm
1317
1317
1317
Static height of gantry
mm
2080
2080
2080
Maximum fork lift height
mm
3000
3000
3000
Forward distance
mm
580
580
580
Ground clearance
mm
65
65
65
Maximum lifting speed (unloaded/full load)
mm/s
150/90
150/90
150/90
Maximum descent speed (unloaded/full load)
mm/s
115/380
115/380
115/380
Full load forward speed
mm/s
195
195
195
Maximum operating speed (unloaded/full load)
km/h
5.5/4.4
5.5/4.4
5.5/4.4
Minimum outside turning radius
mm
1600
1600
1600
Maximum climb with full load
%
5
5
5
Load centre distance
mm
500
500
500
Travelling motor
kw
1.5
1.5
1.5
Lifting motor
kw
3
3
3
Battery rated power
V/Ah
24/180
24/180
24/180
Drive Wheel Size
mm
250*80
250*80
250*80
Auxiliary wheel size
mm
125*50
125*50
125*50
Drive Wheel Type

Pu
Pu
Pu
4400lbs 2200lbs All Direction Reach Stacker Chinese Premium Products 0
4400lbs 2200lbs All Direction Reach Stacker Chinese Premium Products 1
4400lbs 2200lbs All Direction Reach Stacker Chinese Premium Products 2
