7716lb 9920lb 19ft Diesel Forklift Truck with Side Shift with CE certificate

Product Details

Place of Origin: China

Brand Name: KAD

Certification: CE

Model Number: CPC30

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: $6000-$8000 /unit

Packaging Details: Iron pallet+plastic film

Delivery Time: 15 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50units/month

Get Best Price
Contact Now
Specifications
Highlight:

7716lb Diesel Forklift Truck

,

19ft Diesel Forklift Truck

,

9920lb Diesel Forklift Truck

Product Name:
Diesel Forklift Truck
Load Capacity:
1000-3000kg
Load Height:
3000mm-6000mm
Certification:
CE Certificate
Power Type:
Diesel Power
Battery:
12V/80AH
Product Name:
Diesel Forklift Truck
Load Capacity:
1000-3000kg
Load Height:
3000mm-6000mm
Certification:
CE Certificate
Power Type:
Diesel Power
Battery:
12V/80AH
Description

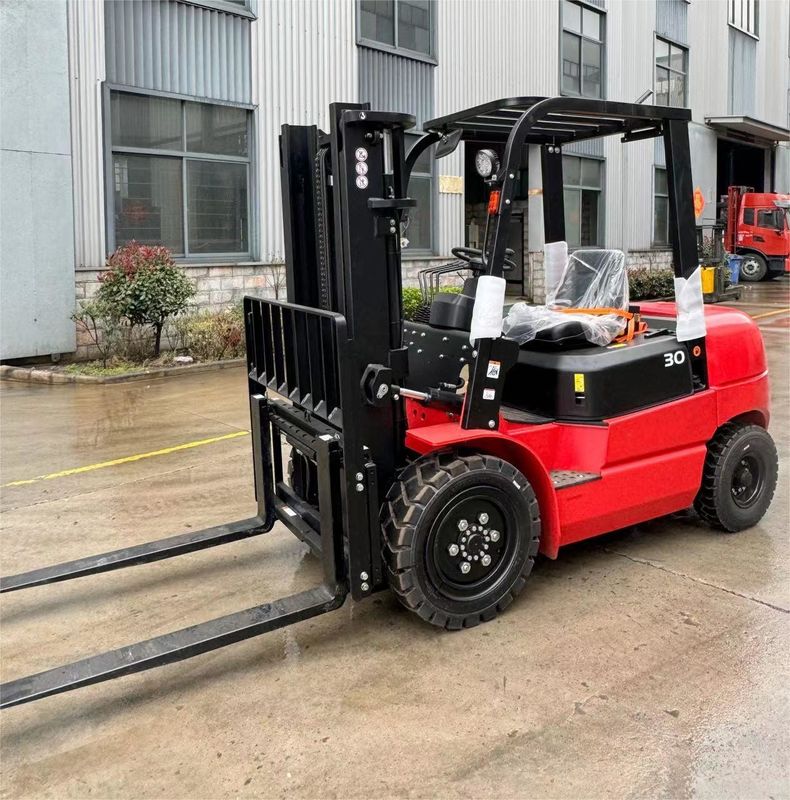

7716lb 9920lb 19ft Diesel Forklift Truck with Side Shift with CE certificate
Product Description

7716lb 9920lb 19ft Diesel Forklift Truck with Side Shift with CE certificate

The Diesel Forklift Truck with Side Shift boasts numerous advantages. It is powered by a diesel engine, renowned for its robustness and durability, ensuring reliable performance even in demanding work environments. The side shift function significantly enhances versatility, allowing for precise positioning of loads in tight spaces. Additionally, its high load capacity and efficient fuel consumption make it an ideal choice for various industries, including logistics, construction, and manufacturing. The diesel forklift's sturdy construction and strong lifting capabilities further solidify its position as a valuable asset for heavy-duty material handling tasks.



7716lb 9920lb 19ft Diesel Forklift Truck with Side Shift with CE certificate 0

7716lb 9920lb 19ft Diesel Forklift Truck with Side Shift with CE certificate 1

7716lb 9920lb 19ft Diesel Forklift Truck with Side Shift with CE certificate 2



Main Features

1. large load capacity: diesel forklifts are usually designed to handle heavy loads, with relatively large load capacity and stability, suitable for handling items of larger weight.
2. efficient working time: diesel forklifts have a strong fuel range and can work continuously for hours after refueling, which is suitable for occasions that require long working hours.
3. Suitable for outdoor environment: diesel forklift trucks are suitable for outdoor environment, able to work in different climate and terrain conditions.
4. fast refueling: compared with electric forklifts, diesel forklifts can be refueled quickly, reducing downtime during operation.
5. Suitable for Heavy Industry: Diesel forklifts are suitable for heavy industry, such as steel, construction and manufacturing,and are able to cope with different kinds of weight cargo handling and stacking needs.



Specification
Model
-
CPC30
Rated capacity
Kg
3000
Load center
mm
500
Max.lifting height
mm
3000-6000
Free lifting height
mm
100
Fork size L*W*H
mm
1070*122*40
Mast tilting angle forward/backward
°
6/12
Min. turning radius
mm
2400
Min. ground clearance (mast)
mm
135
Overhead guard height
mm
2160
Height from seat to overhead guard
mm
1005
Max. traveling speed (loaded)
Km/h
20
Max. lifting speed (loaded/unloaded)
mm/s
450/480
Max. traction/gradeability (loaded)
kN/°
13.5/20
Win. right angle stacking aisle width
mm
4280
Overall length (without fork)
mm
2682
Overall width
mm
1225
Mast lowered height
mm
2090
Mast extended height
mm
4225
Tyre(front)
-
28*9-15PR
Tyre(rear)
-
6.50-10PR
Wheelbase
mm
1700
Tread(front/rear)
mm
1000/970
Curb weight(none-load)
kg
4350
Battery(voltage/capacity)
V/Ah
12/80
Engine(model)
-
C490
Engine(rated power)
kW/r.p.m
37/2500
Engine(rated torque)
Nm/r.p.m
156/1700-1900
Engine(cylinder amount)
-
4
Engine(bore*stroke)
mm
90*105
Engine(displacement)
L
2.54
Fuel tank capacity
L
70
Transmission
-
Manual machinery
Working pressure
MPa
17.5
