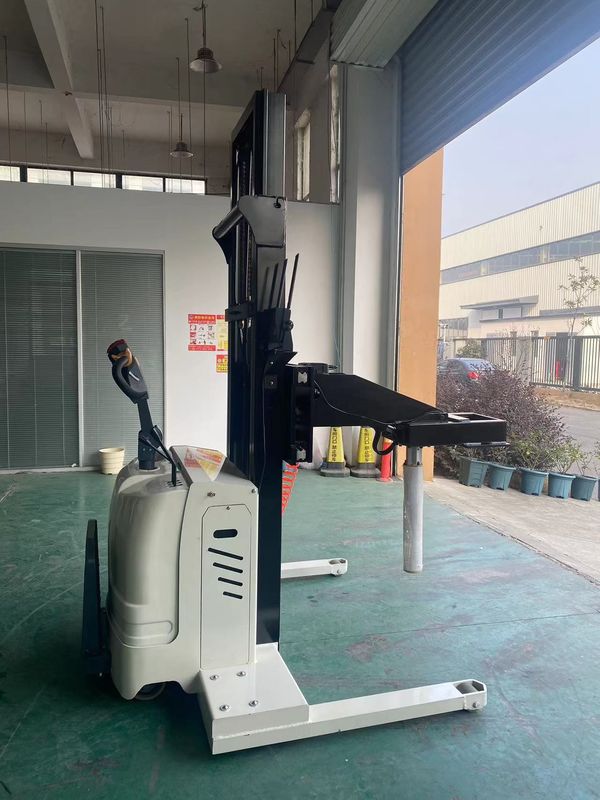

1000kg Reel Handling Mobile Hydraulic Film Roller Electric Battery Reel Lifter

1000kg Reel Handling Mobile Hydraulic Film Roller Electric Battery Reel Lifter

The film winder stacker is used to tighten the inner core of the film winder and paper roll stacker. It is based on the principle that the utility model relates to a tensioning structure applied to a film winder, including a fixed shaft, a tensioning member set on the fixed shaft, and a lock nut mounted on the fixed shaft. The utility model has the advantages of simple operation, compact structure, fast tightening speed, effective improvement of the tensioning force and maintenance of a large torque, favoring improvement of the stability of the film sealing or tearing, improvement of the work efficiency, and adaptability to the film winding of different inner diameters. We apply this film winding and tensioning structure to electric stacker, all operations are electric, which greatly improves the working efficiency.

1.All-electric film paper roll up axis rotary loading car for mechanical special design, expansion axis can be set for the built-in battery power electro-hydraulic drive, easy to insert the film paper roll into the center of the shaft hole, fork up the horizontal horizontal or vertical rolls, rotate so that the vertical into horizontal or horizontal put into the vertical.

Application of motorised shaft film winder in paper roll industry

Motorized shaft film winders can have several applications in the paper roll industry, despite being primarily designed for handling film materials. Here are some ways in which motorized shaft film winders can be utilized in the paper roll industry:

Film Lamination: In the paper industry, laminating films are often applied to paper products to enhance their strength, durability, or appearance. Motorized shaft film winders can be used to unwind rolls of laminating film and apply them to paper rolls efficiently and precisely.

Coating Applications: Motorized shaft film winders equipped with coating units can apply various coatings to paper rolls, such as protective coatings, adhesives, or decorative finishes. These coatings can enhance the properties of the paper or provide specific functionalities, such as water resistance or printability.

Protective Wrapping: Paper rolls may require protective wrapping for shipping or storage purposes. Motorized shaft film winders can be used to wrap paper rolls with stretch film or other protective materials, ensuring that they remain intact and free from damage during transportation or warehousing.

Edge Sealing: Paper rolls with exposed edges may be susceptible to damage or contamination. Motorized shaft film winders can apply edge-sealing films or tapes to protect the edges of paper rolls, maintaining their integrity and cleanliness throughout handling and storage.

Reel-to-Reel Transfer: In paper processing operations, such as printing or coating, motorized shaft film winders can facilitate the transfer of paper rolls between different processing stages. They can unwind rolls from one shaft and rewind them onto another shaft, allowing for seamless reel-to-reel transfer without interrupting the production process.

Customization and Branding: Motorized shaft film winders can be used to apply custom-printed films or labels to paper rolls, incorporating branding, product information, or decorative elements. This allows paper manufacturers to differentiate their products and enhance their market appeal.

Quality Control and Inspection: Motorized shaft film winders equipped with tension control and monitoring systems can ensure consistent winding quality and detect defects or irregularities in the film or paper rolls. This helps maintain product quality standards and prevents waste or rework.

Overall, while motorized shaft film winders are primarily designed for handling film materials, their versatility and precision make them valuable tools for various applications in the paper roll industry, ranging from coating and lamination to protective wrapping and customization. By leveraging the capabilities of motorized shaft film winders, paper manufacturers can enhance their production processes, improve product quality, and meet the diverse needs of their customers.
