1 Ton 1.5 Ton Lightweight Electric Stacker Truck Lightweight Forklift With Pedals

Product Details

Place of Origin: China

Brand Name: KAD

Certification: CE

Model Number: CDD1030

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: $2000-$3000/unit

Packaging Details: Iron pallet+plastic film

Delivery Time: 7 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50units/month

Get Best Price
Contact Now
Specifications
Highlight:

1 ton Electric Stacker Truck

,

lightweight Electric Stacker Truck

,

1.5 ton lightweight forklift

Product Name:
Electric Stacker With Straddle Legs
Power Type:
Electric Power
Loading Capacity:
1000kg
Brand:
KAD
Load Center:
500mm
Lifting Height:
3000mm
Min.Turning Radius:
1450mm
Lifting Motor:
2.2kw
Product Name:
Electric Stacker With Straddle Legs
Power Type:
Electric Power
Loading Capacity:
1000kg
Brand:
KAD
Load Center:
500mm
Lifting Height:
3000mm
Min.Turning Radius:
1450mm
Lifting Motor:
2.2kw
Description
1 Ton 1.5 Ton Lightweight Electric Stacker Truck Lightweight Forklift With Pedals
Product Description

Hot sale 1 ton 1.5 ton lightweight all electric pallet stacker with pedals

It is suitable for small tonnage and high lift cargo storage. It has a rated load of 1000kg-1500kg and a maximum lifting height of 3500mm as standard.It is a straddle stacker with the advantage of small size and small turning radius. It is suitable for large three-dimensional factories, warehouse storage, supermarkets and wharf cargo storage and handling work.

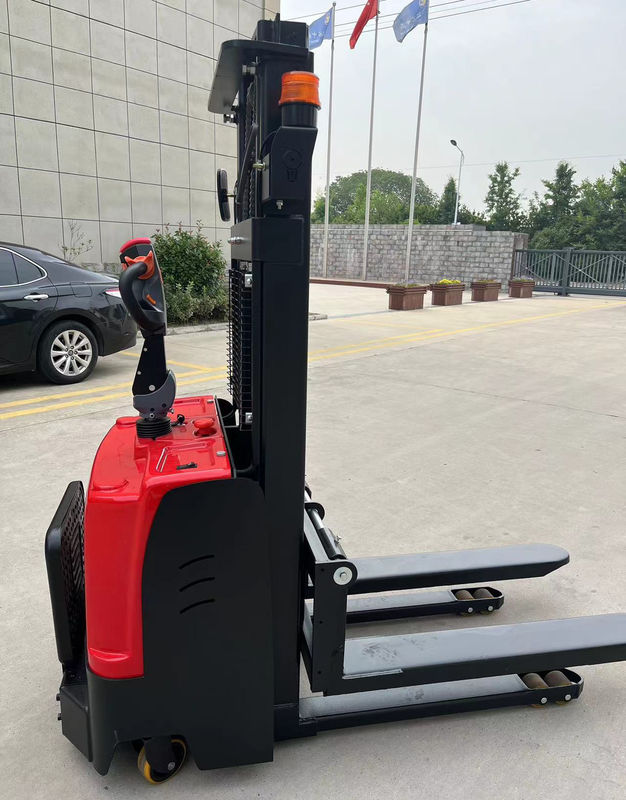

1 Ton 1.5 Ton Lightweight Electric Stacker Truck Lightweight Forklift With Pedals 0

1 Ton 1.5 Ton Lightweight Electric Stacker Truck Lightweight Forklift With Pedals 1

1 Ton 1.5 Ton Lightweight Electric Stacker Truck Lightweight Forklift With Pedals 2



Main Features

1. Medium intensity material handling, stacking and loading/unloading.

2. Designed for narrow aisles

3. Only suitable for single-sided pallet use.

4. High-strength vertical gearbox improves transmission efficiency, reduces transmission noise, and has a long working life.

5. Folding pedals provide a comfortable working environment for operation.

6. Large-capacity battery ensures long time use.

Specification
Model

CDD1030
CDD1530
Load Capacity
kg
1000
1500
Lifting Height
mm
3000
3000
Load Center
mm
500
500
Fork size
mm
1100*170*50
1100*170*50
Minimum Ground Clearance
mm
30
30
Pedal Length
mm
410
410
Handler Height
mm
1490
1490
Outer Distance between Forks
mm
685
685
Inner Distance between Forks
mm
345
345
Tyre Type

Polyurethane
Polyurethane
Control Way

Handler
Handler
Speed Regulation Way

Stepless Speed Regulation
Stepless Speed Regulation
The Min.Turning Radius
mm
1450
1450
Driving Speed with Full Loads
km/h
4
4
Maximum gradient climb with full load
°
3°/5°
3°/5°
Battery
V/Ah
24V/80A
24V/80A
Driving Motor
kw
0.75
0.75
Lifting Motor
kw
2.2
2.2
Tyre Size
mm
210/80
210/80
Overall dimensions(L*W*H)
mm
1880*860*2100
1880*860*2100
Weight
kg
580
600
Reference Working Time
h
3
3
lncreased height each tonnage


mm
1600/2000/2500/3000/3500
Max height
2100/1600/1850/2100/2350

Differences between straddle stackers and legless stackers
Both straddle stackers and legless stackers are material handling equipment used in warehouses and distribution centres, but they differ markedly in design, function and application.

1. Design:

Straddle Stacker: These stackers have a straddle design where the forks reach under the load and the legs of the stacker straddle the pallet or load. The forks are lifted and lowered by a hydraulic system and the operator usually stands behind the stacker.

Legless stackers: As the name suggests, legless stackers do not have legs that straddle the load. Instead, they are more compact in design, with the forks located directly underneath the load. The operator usually walks behind or beside the stacker.

2. Fork configuration:

Straddle stacker: the forks extend beyond the width of the stacker body, enabling them to straddle wide loads or multiple pallets side by side.

Legless stackers: the forks are usually narrower and do not extend beyond the width of the stacker body. They are designed to handle individual pallets or narrow loads.

3. Manoeuvrability:

Straddle stackers: Compared to legless stackers, legged stackers may be slightly less manoeuvrable in confined spaces due to their wider stance, which allows them to sit straddling the load.

Legless stackers: These stackers are usually more manoeuvrable, especially in narrow aisles, because of their more compact design.

4. load capacity:

Straddle Stackers: Generally speaking, straddle stackers have a higher load capacity than legless stackers, largely due to the wider stance and design of straddle stackers, which allow for larger or heavier loads to be handled.

Legless Stackers: While legless stackers may have a slightly lower load capacity compared to straddle stackers, they are still capable of handling a wide range of loads typically encountered in a warehouse environment.

5. Applications:

Straddle stackers: These stackers are typically used to handle wide or bulky loads such as large pallets, long loads or multiple pallets side by side. They are suitable for environments where space is not limited.

Legless stackers: Legless stackers are suitable for applications where space is limited, such as narrow aisle warehouses or retail environments with small storage areas. They are ideal for efficiently handling individual pallets or smaller loads.

In summary, while both straddle stackers and legless stackers are capable of lifting and moving loads within a warehouse or distribution centre, they have design differences that make them better suited to specific applications and operating environments.
