500kg 1000kg 1500kg loading capacity electric pallet lift stacker with roll clamp stacker

Product Details

Place of Origin: China

Brand Name: KAD

Certification: CE

Model Number: RD100BJ-30

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: $7300-$7500/unit

Packaging Details: Iron pallet+plastic film

Delivery Time: 7 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50units/month

Get Best Price
Contact Now
Specifications
Highlight:
Product Name:
Roll Stacker
Power Type:
Electric Power
Loading Capacity:
1000kg
Brand:
KAD
Load Center:
500mm
Lifting Height:
3000mm
Turning Radius:
1520mm
Battery Voltage/capacity:
24/210 V/Ah
Product Name:
Roll Stacker
Power Type:
Electric Power
Loading Capacity:
1000kg
Brand:
KAD
Load Center:
500mm
Lifting Height:
3000mm
Turning Radius:
1520mm
Battery Voltage/capacity:
24/210 V/Ah
Description
500kg 1000kg 1500kg loading capacity electric pallet lift stacker with roll clamp stacker
Product Description

500kg 1000kg 1500kg loading capacity electric pallet lift stacker with roll clamp stacker

Electric paper roll stackers are widely used in paper industry, packaging industry, printing industry, textile industry handling, suitable for paper tube, carpet, fabric, cable, wood, steel coil, rope, tyre, film rolls or all industries round shape warehouse workshop goods handling, shifting, stacking, electric turning and other work. Holding clip type: cylindrical, oil drum type, shaped, etc., the rotation mode for 90 degrees, 180 degrees and 360 degrees. With the help of the unique clamping, side shifting and rotating functions of the attachments, the goods can be transported, stacked, loaded or unloaded in a safer way, thus minimising the loss of goods.

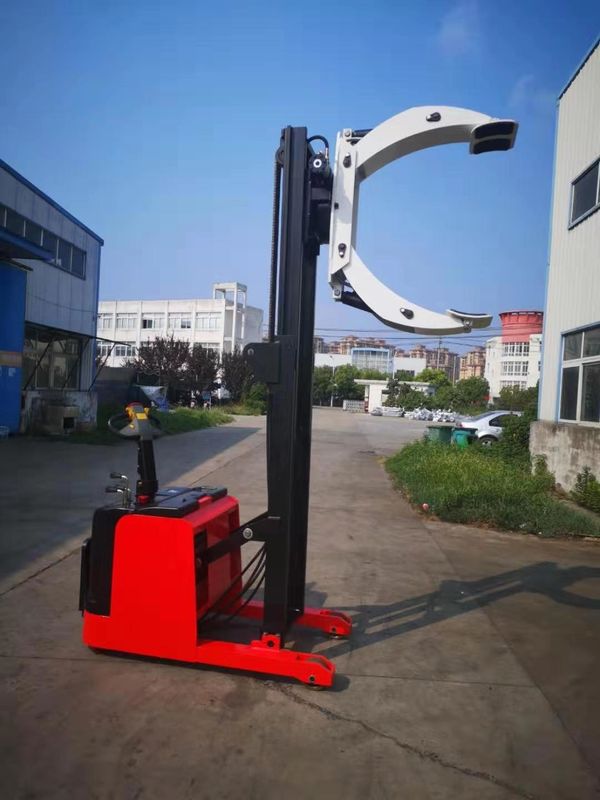

500kg 1000kg 1500kg loading capacity electric pallet lift stacker with roll clamp stacker 0

500kg 1000kg 1500kg loading capacity electric pallet lift stacker with roll clamp stacker 1

500kg 1000kg 1500kg loading capacity electric pallet lift stacker with roll clamp stacker 2





Main Features

1.It is suitable for holding goods, rotating, raising and placing.

2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.

3.It can rotate 180 degrees or 360 degrees electrically.


4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.



Specification
Rated load
kg
500/1000/1500
Max height of clamp
mm
1500/3000/customized
Min height of clamp
mm
100
Load center
mm
500
Operation way

Electric moving, lifting, rotating, graping
Turning radius
mm
1520
Aisle width
mm
2500
Length
mm
1900
Width
mm
810
Height
mm
1900
Mast

1-stage/2 stage
Adjustable extent of clamp
mm
700-1200
Rotation angle
°
90/180/360
Running speed (load/unload)
km/h
4.3/4.5
Hoisting speed(load/unload)
mm/s
110/160
Descent speed(load/unload)
mm/s
150/130
Climbing capability
(load/unload)
%
5/8
Braking mode

Electronic brake
Tyres,material

Pu
Hydraulic motor
kw
2.5kw
Battery
v/ah
24/210Ah
Charger
v/a
24v/30
Weight
kg
1000

The effect of using clamping forklift trucks
Clamping forks are a common type of logistics equipment, which is mainly used for handling goods. The design concept of clamping forks is to clamp the goods for more stable handling. In this article, we will introduce the structure of the clamping type fork, the principle of work, the scope of application and precautions.



First, the structure of the clamping type fork is mainly composed of clamping arm, clamping claw, hydraulic cylinder, oil pipe, control valve and so on. Among them, the clamping arm is the main part of the clamping type fork, it is composed of two parallel steel plate, the middle through the hydraulic cylinder connection. The two ends of the clamping arm are installed with clamping jaws, the shape and size of the clamping jaws are different according to the different goods. The hydraulic cylinder is the power source of the clamping fork, it is connected to the operator's console through the oil pipe and control valve.



Second, the working principle of the clamping type fork is relatively simple, when the operator will be clamping type fork to move to the cargo side, through the console will be the piston of the hydraulic cylinder to push outward, the clamping arm of the two ends of the clamping claw will be clamped to the cargo. When the clamping jaws clamp the cargo, the operator can lift the cargo and move it to the destination. When the goods arrive at the destination, the operator will be the piston of the hydraulic cylinder inward retraction, the clamping claws will release the goods.



Third, the clamping fork is widely used in logistics, warehousing, manufacturing and other fields. It can handle goods of various shapes and sizes, such as wooden boards, steel pipes, boxes, barrels and so on. Clamping forks can also be used for loading and unloading trucks, docks and other places to improve logistics efficiency.



Fourth, the precautions of clamping type forks

When operating the clamping type fork, must pay attention to the weight and size of the goods, so as to avoid overloading or overloading. Clamping type fork hydraulic system must be regularly checked and maintained to ensure its normal operation. When operating the clamping type forks, must pay attention to the surrounding environment, avoid collision or hit other objects.



In the use of clamping type forks, must pay attention to safety, to avoid accidents. In short, the clamping fork is a very practical logistics equipment, it can improve logistics efficiency, reduce labour costs. But in the use of clamping forks must pay attention to safety, to avoid accidents. Only in strict compliance with the operating procedures, in order to better play the role of the clamping fork.
