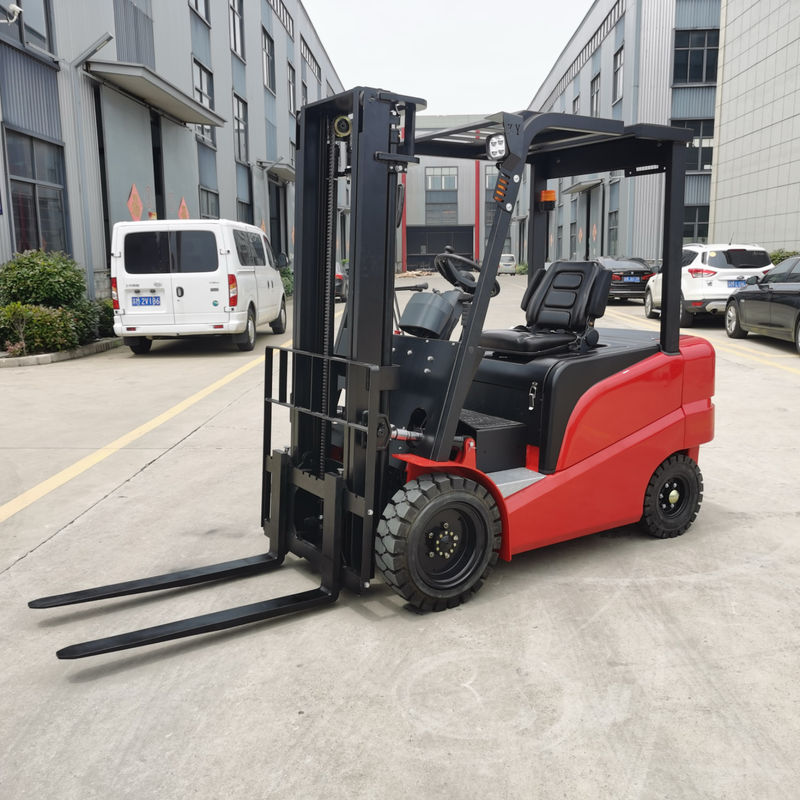

Economic four wheel Electric forklift 1.5ton 2ton 3ton Electric forklift truck with high quality

Product Details

Place of Origin: China

Brand Name: KAD

Certification: CE

Model Number: CPD1530

Payment & Shipping Terms

Minimum Order Quantity: 1unit

Price: $6000-$8000 /unit

Packaging Details: Iron pallet+plastic film

Delivery Time: 7 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50units/month

Get Best Price
Contact Now
Specifications
Highlight:
Product Name:
Electric Forklift
Power Type:
Electric Power
Loading Capacity:
1500kg
Weight:
2200kg
Brand:
KAD
Load Center:
500mm
Tyres:
Solid
Lifting Motor:
3kw
The Min. Turning Radius:
1750mm
Product Name:
Electric Forklift
Power Type:
Electric Power
Loading Capacity:
1500kg
Weight:
2200kg
Brand:
KAD
Load Center:
500mm
Tyres:
Solid
Lifting Motor:
3kw
The Min. Turning Radius:
1750mm
Description
Economic four wheel Electric forklift 1.5ton 2ton 3ton Electric forklift truck with high quality
Product Description

Economic four wheel Electric forklift 1.5ton 2ton 3ton Electric forklift truck with high quality

Four-wheel electric forklifts are forklifts that use an electric drive system to provide power, and they are typically more environmentally friendly and quieter than traditional internal combustion engine forklifts, as well as being easier to maintain. Four-wheel drive makes these forklifts more stable, with better traction and maneuverability, and they are suitable for a wide range of different surfaces and work environments. Four-wheel electric forklifts typically have better maneuverability and can be operated and steered more easily, making them suitable for cargo handling and stacking in tight spaces. Electric forklifts typically have a longer range and can run continuously for longer periods of time, which increases efficiency. They can also be recharged for power, reducing reliance on liquid fuels and therefore being more energy efficient and environmentally friendly. Four-wheel electric forklifts are usually used in warehousing, logistics and manufacturing for cargo handling and stacking operations.

Economic four wheel Electric forklift 1.5ton 2ton 3ton Electric forklift truck with high quality 0

Economic four wheel Electric forklift 1.5ton 2ton 3ton Electric forklift truck with high quality 1

Economic four wheel Electric forklift 1.5ton 2ton 3ton Electric forklift truck with high quality 2



Main Features

1. Adopting ZAPI, the electronic control system is mature and reliable; AC AC brushless maintenance-free motor saves the time and cost of maintenance.
2. Adopting MOSFET traveling and lifting controller, the forklift traveling and lifting control is precise and smooth, with regenerative braking, reverse braking, ramp anti-slip and other functions, excellent maneuvering performance.
3. The voltage output of DC/DC converter is more stable, which prolongs the service life of electrical components, especially improves the service life of battery.
4. The whole vehicle circuit system has overheating protection, reverse connection protection, anti-short-circuit function, and strengthen the electrical surface waterproof and dustproof measures.
5. Wide field of vision design of the gantry, high operating sensitivity and lifting balance, flexible steering and small turning radius. Ensure the whole machine is controllable, flexible, lightweight and efficient operation.
6. Lifting cylinder with buffer device, pipeline system set up safety devices, even if the pipeline rupture will not cause the gantry or cargo out of control.

Specification
Model

CPD1530
CPD2030
CPD3030
Load Capacity
kg
1500
2000
3000
Lifting Height
mm
3000
3000
3000
Load Center
mm
500
500
500
Fork size
mm
1070*100*40
1220*120*60
1220*120*60
Ground Clearance
mm
60/130
80/130
80/130
Tyre Type

solid Tyres
solid Tyres
solid Tyres
Control Way

Steering Wheel
Steering Wheel
Steering Wheel
Speed Regulation Way

Stepless Speed Regulation
Stepless Speed Regulation
Stepless Speed Regulation
Protection Guard Height
mm
2000
2100
2100
Mast Tilt Angle (Front/Rear)
(°)
3.0/6.0
3.0/6.0
3.0/6.0
The Min.Turning Radius
mm
1750
2100
2150
Driving Speed with Full Load
km/h
6
15
15
Maximum Gradient with full load
°
5°/8°
15
15
Battery
V/Ah
48/140
60/280
48/420
Driving Motor
kw
3
5
5
Lifting Motor
kw
3
5
5.5
Tyre Size (Front/ Rear)
mm
400/400
22x7-12/18x7-8
22x7-12/18x7-8
Overall dimensions(L*W*H)
mm
3000*1030*2100
3450*1100*2100
3750*1160*2100
Weight
kg
2200
3000
3800
Reference Working Time
h
4/6
4/6
4/6
Increased height each tonnage
mm
1600/2000/2500/3000/3500
Max height
mm
2100/1600/1850/2100/2350

Characteristics and use of forklift
Forklift is a kind of loading and unloading vehicle which takes fork as the main fetching tool, relies on the hydraulic lifting mechanism to realize the goods fetching and lifting, and realizes the horizontal handling of goods by the tire walking mechanism. It is mainly used for loading and unloading, stacking, depalletizing and short-distance handling of various goods. The type and specification of the vehicle are various, and there are many kinds of fetching tools (belongings), and the operation is mobile and flexible, so it is widely used. Countries mass production, is one of the largest time to keep the amount of loading and unloading machinery. It is also a common loading and unloading vehicle in harbor.


Forklift due to the compact structure, small size, light weight, tire-type trackless walking, good mobility, so widely used in port warehouses, yards, warehouses for stacking, depalletizing operations, greatly improving the utilization rate of the warehouse volume, the utilization rate of the area of the yard and the fill rate of the cabin capacity.
Forklift trucks are divided into general-purpose forklift trucks and specialized forklift trucks. General forklift is mass-produced, in various parts and places have been used in the forklift: special forklift is used to load and unload a certain kind of goods forklift or forklift dedicated to special occasions. Specialized forklifts in the port are container forklift, container operation forklift and roll-on roll-off forklift.



Taizhou Kayond four-wheel forklift also has great advantages. It is suitable for large tonnage, high lift cargo storage applications. Rated load 1500Kg-5000kg, standard maximum lifting height of 3500mm. It is equipped with heavy forklift trucks, with the characteristics of bearing the heavy direction of flexibility, turning radius is small, can ignore the obstacles of the bottom of the shelf. It is suitable for the storage and transportation of goods in large three-dimensional factories, warehouses, supermarkets and wharves.
